| TYPE |
CHARACT
- ERISTICS |
DISCHARGE QTY |
WEIGHT |
CONNECTING PART |

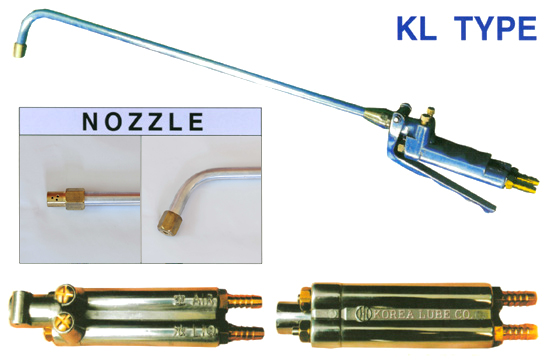

APPLICATION |
| KL |
Both For Water And Oil. (Applicable To Pressure Type.) |
At 2kg pressure
3000(cc/min) |
600gr |
Air (1/4")
Liq(1/4") |
*For forging And Die releasing.
*Cleaning agent For Various Machines And instrument |
※
It will Fluctuate More or less at times.
※
DIRECTIONS FOR USE:
Pressing the knob For once air discharges and, by the 2nd pressure Air and Oil is discharges, simple and convenient to use, and improves your work efficiency.
SPRAY

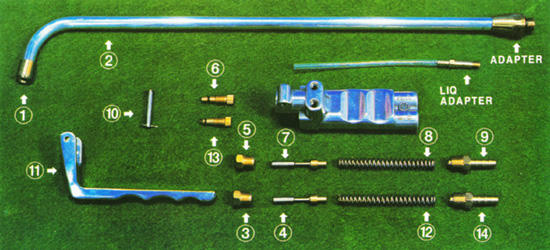

GUN PARTS CONSTRUCTION CRAWING
| No |
NAME |
No |
NAME |
| ① |
'A'
TYPE NOZZLE |
⑧ |
AIR
VALVE SPRING |
| ② |
PIPE |
⑨ |
AIR
CONNECTION PIECE |
| ③ |
LIQUID
CAP |
⑩ |
LEVER
PIN |
| ④ |
LIQUID
VALVE PIN |
⑪ |
LEVER |
| ⑤ |
AIR
CAP |
⑫ |
LIQUID
VALVE SPRING |
| ⑥ |
AIR
CONTROL SCREW |
⑬ |
LIQUID
CONTROL SCREW |
| ⑦ |
AIR
VALVE PIN |
⑭ |
LIQUID
CONNECTION PIECE |
|
